The variable cycle engine (VCE) is a game changer thanks to its revolutionary configuration that delivers optimized performance across all flight profiles for mixed missions – including subsonic, transonic, and supersonic speeds. The concept essentially enhances the efficiency of a supersonic jet engine, making it possible for fifth
or sixth-generation fighter jets
to achieve long station times and ranges as well as flying at brutally fast top speeds.
According to this ResearchGate study on variable cycle engines, the design integrates characteristics of both turbojet and turbofan designs, allowing for dynamic adjustments in airflow and bypass ratios at any time. The ability to adapt the engine’s core characteristics provides significant fuel efficiency thereby dramatically improving the operational flexibility of the aircraft.
The development of VCEs is being driven by the increasing complexity of air warfare, where aircraft are required to perform a wide range of missions that demand high performance across the board, from range and loiter time to maximum speed and altitude. As adversarial technologies continue to advance in near-peer nations, developing these propulsion systems, like the General Electric
XA100 VCE, becomes ever more critical. Through sophisticated engineering techniques, a spirit of innovation and the determination to secure America’s place as the top air power in the world, the first variable cycle engines will be soaring through the skies one day soon.
Principles behind Variable Cycle Engines
Variable cycle engines adjust their performance profile by modifying the bypass ratio, a key parameter distinguishing turbojet and turbofan engines. Low bypass ratios support high-speed supersonic flight, while higher bypass ratios improve efficiency during subsonic operation. A GE Aerospace release explains that these engines use adaptive cycle technology to seamlessly transition between high-thrust and high-efficiency modes.
Photo: US Air Force

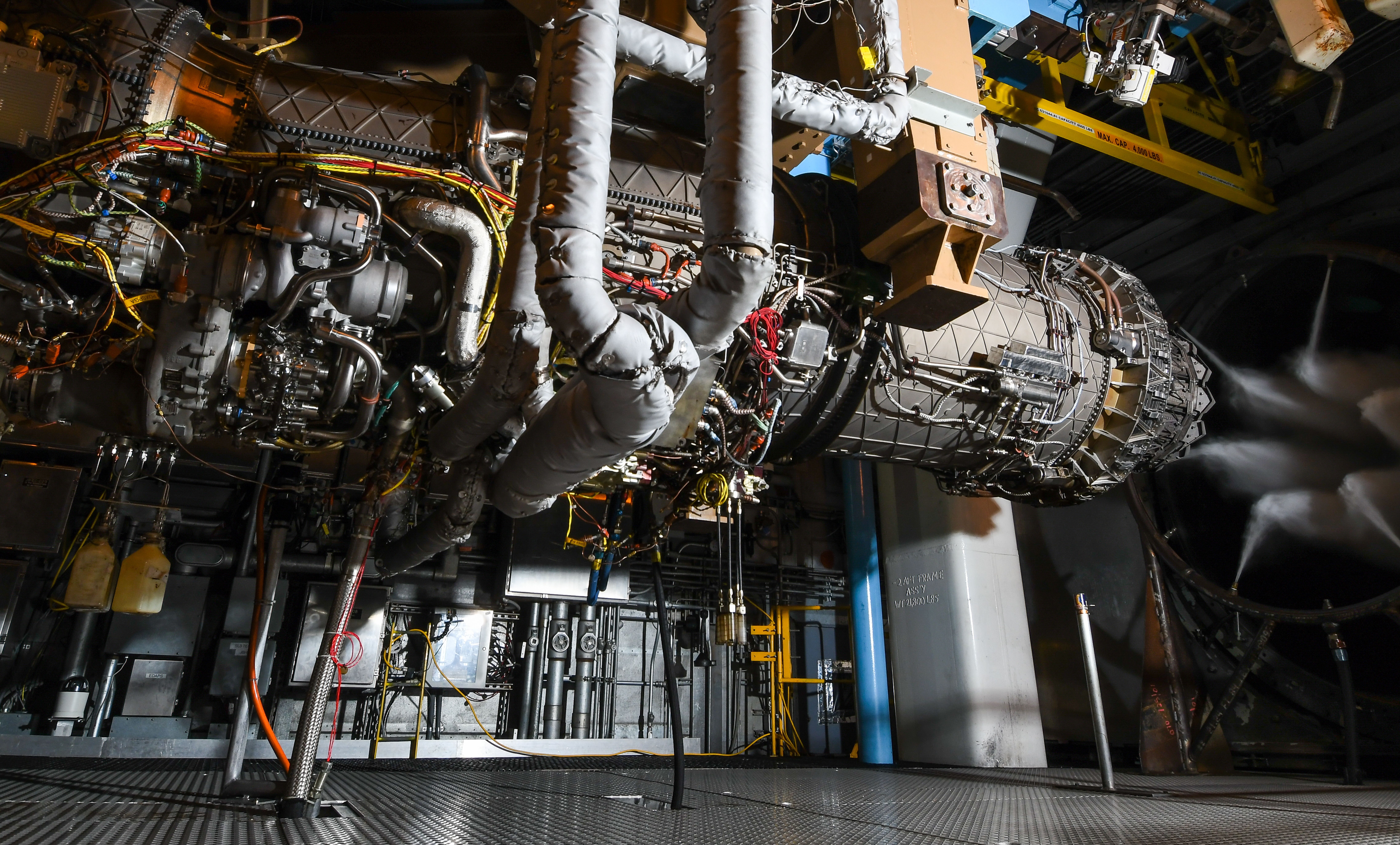

The GE XA100 is designed with a three-stream adaptive cycle that can direct air to the bypass third stream to increase fuel efficiency and thereby cooling, or it can direct more flow to the core and fan streams to generate higher thrust and deliver greater performance. The engineering innovations that make a VCE possible include new heat-resistant materials such as ceramic matrix composites (CMC), among other advanced thermal management technologies, which are essential for handling the wide range of operational conditions that such an engine will experience.
Photo: US Air Force
In Europe, the race is on to develop a VCE for the Future Combat Air System (FCAS) and is pursuing the same engine technology with engine specialists MTU Aero Engines, Safran Aircraft Engines, and ITP Aero. They are developing the engine for the New Generation Fighter under the leadership of EUMET (European Military Engine Team), an MTU and Safran
joint venture.
The long list of innovations includes adaptive fans and compressors that adjust airflow dynamically to maintain optimal performance. A big part of the barrier to creating the VCE is developing materials capable of withstanding extreme temperatures, unlike turbofans or any other jet engine. These components operate under the management of advanced control systems that ensure instantaneous adjustments are made based on a wealth of sensor data.
To manage the intense heat generated during high-performance operations, variable cycle engines incorporate the most advanced cooling techniques of any aircraft propulsion system to date. Materials like ceramic matrix composites (CMC) are increasingly employed throughout the construction of the engine for critical components, which also has the benefit of reducing weight while enhancing thermal resistance.
Modern digital engineering has been a major factor in the breakthrough development of the first VCE engine, GE’s XA100. Digital modeling and simulation techniques have reduced development timelines and allowed for precise optimization of engine components like never before. The use of simulations also facilitates rapid prototyping, and allows for greater preemptive testing and design changes, minimizing risks before going to full-scale testing.
Related
5 Fast Facts On China’s Military Aircraft Engines
China has made it a national priority to develop military jet engines for its fighter jets, bombers, transports, and UAVs.
Applications and advantages

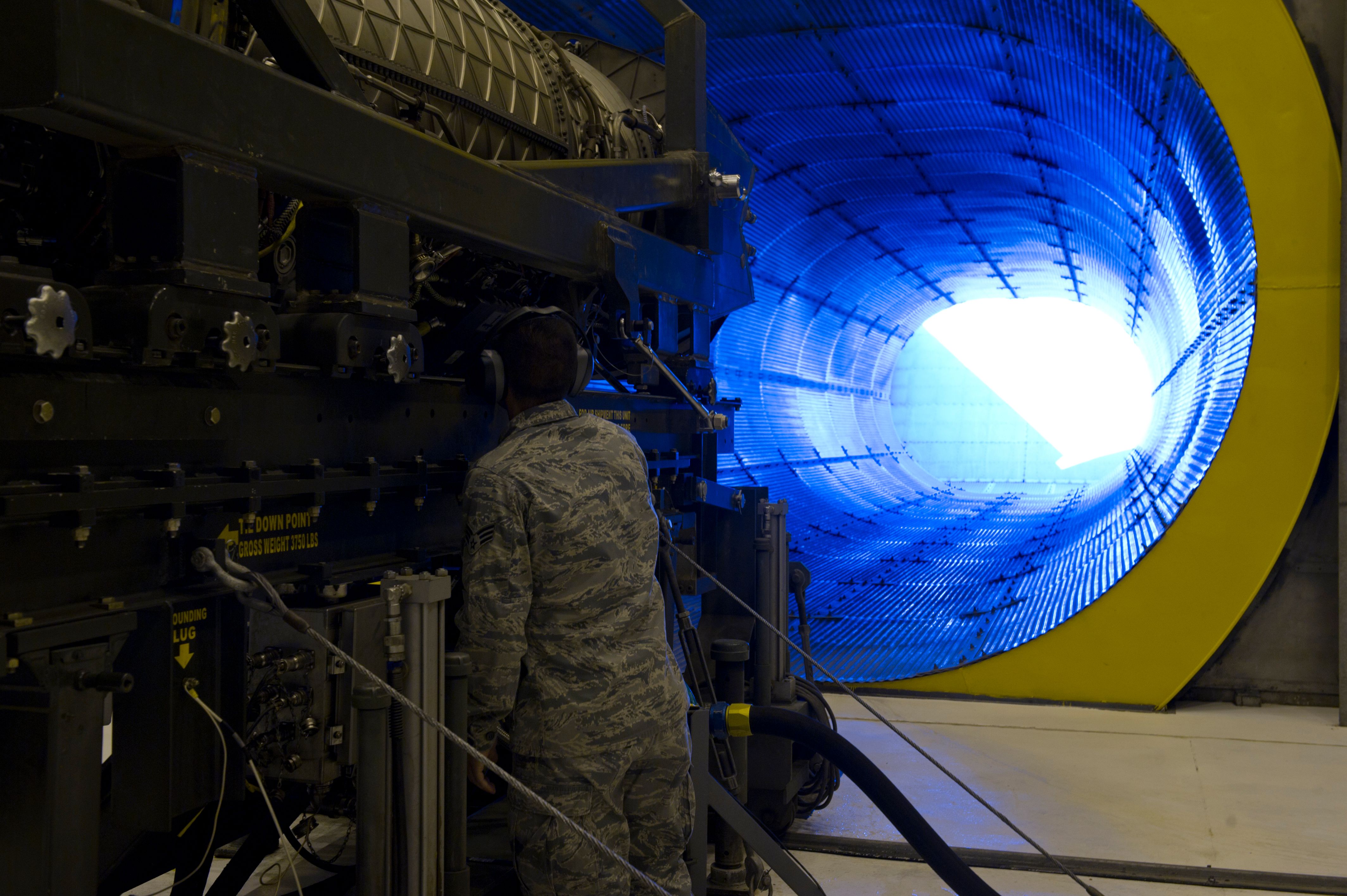

The adaptability offered by VCEs will allow sixth-generation fighter jets to perform a diverse set of mission profiles with superior performance compared to anything that has come before. This Aerospace Testing International article reports that GE’s XA100 adaptive engine has demonstrated enhanced thrust and efficiency in ground testing, an early demonstration that proved its potential for next-generation aircraft.
“As part of NGAP, GE Aerospace has a second adaptive engine in development, the XA102, which completed a major design review in December. The XA102 will now continue toward a prototype engine test.
GE Aerospace has been working on adaptive cycle engines for more than a decade. The design adjusts bypass ratio and fan pressure by directing air into a third bypass stream using a fan t increase fuel efficiency or thrust depending on the requirement.”
VCEs are expected to also improve cost-effectiveness by reducing fuel consumption and maintenance intensiveness. The ability to manage fuel burn efficiently across multiple flight regimes translates into lower operational costs, while smarter sensors and control systems simplify maintenance and extend service lifespans. Benefits extend beyond fuel efficiency and thrust to include reduced thermal signature, a design feature that will be critical for future stealth operations. Enhanced power management systems also allow for better integration with digital avionics.
Photo: US Air Force
The key application of VCES lies in its use for next-generation aircraft designs, including those that will be unmanned aerial systems. The performance of VCEs makes them the best fit for future aircraft that could include other emerging technology like autonomous systems and artificial intelligence.
VCEs will provide major strategic advantages in contested operating environments. Their ability to switch from economical to max-performance at the drop of a hat, significantly reduces vulnerability, enabling pilots to respond rapidly to rapidly changing scenarios. This capability is particularly valuable in multi-domain operations where combined-arms coordination between air, land, and sea forces is essential.
The development of VCEs may also lead to advancements in supersonic commercial aviation. These engines’ unique combination of efficiency and power makes them potential candidates for economical, low-noise powerplants in commercial supersonic aircraft. This application would broaden the application of VCE technology beyond military use, furthering the aerospace industry as a whole.
The most powerful fighter engines in the world
The F135 is the latest and greatest fighter jet engine in the world, powering the Lockheed Martin F-35
Lightning II. The F119 is another incredibly powerful engine, with two of them serving as the powerplant in Lockheed Martin’s F-22 Raptor
– the world’s first fifth-generation fighter. The XA100’s advanced features, with its adaptive cycle technology, position it as a major change for future fighter jets that will face ever more complex operational demands.
Photo: US Air Force
Pratt & Whitney F135 engine specifications:
- Maximum thrust: 43,000 lbf/191 kN
- Length: 220 in/5.6 m
- Diameter: 43 in/1.1m
Pratt & Whitney F119 engine specifications:
- Maximum thrust: 35,000 lbf/156 kN
- Length: 196 in/4.9 m
- Diameter: 48 in/1.2 m
GE Aerospace
XA100 engine specifications:
- Maximum thrust: 45,000 lbf/200 kN
- Length: projected 193 in/4.9 m
- Diameter: projected 44 in/1.1 m
Related
What’s Next For The USAF NGAD After Chinese 6th-Gen Fighter Spotted?
The two new prototypes China just flew are sure to cause a stir in Washington and time will tell what that means for NGAD.
The future of Variable Cycle Engines
Variable cycle engines represent a transformative approach to fighter jet propulsion, offering unmatched versatility and efficiency. The three-stream architecture of GE’s XA100 introduces the revolutionary third air stream to a real, working engine. This concept was developed under the US Air Force
Versatile Affordable Advanced Turbine Engines (VAATE) program, in collaboration with industry partners, through the Adaptive Versatile Engine Technology (ADVENT), Adaptive Engine Technology Demonstrator (AETD), and Adaptive Engine Transition Program (AETP).
Photo: US Air Force
As NASA describes it in this study that was conducted with Pratt & Whitney Engines
, the key technologies that go into such a unique engine are as follows:
-
Duct Burner
- Low Emissions
- High Performance
- Durability
-
Coannular Exhaust Nozzle
- Low Noise
- High Performance
- Variable Geometry Components
- Reverser
- High Temperature Validation
- High And Low-Pressure Turbines
- Durability
- High Performance
-
Main Combustor
- * Low Emissions
- * High Performance
- * Durability
-
Variable Geometry Components
- Fan And High-Pressure Compressor
- High Efficiency
- Improved Stability
- Full Authority Integrated
- Electronic Control System
This Defense Opinion article remarked that the Air Force’s commitment to these engines is essential to ensure dominance in air combat through technological superiority. As the operational demands of modern air warfare grow more complex, these engines will be crucial to building tactical aircraft capable of adapting seamlessly to a battlefield where scenarios can dramatically change at a moment’s notice.
Photo: US Air Force
This GE release highlights XA100-GE-100 engine’s three key innovations that deliver a generational change in combat propulsion performance:
- “An adaptive engine cycle that provides both a high-thrust mode for maximum power and a high-efficiency mode for optimum fuel savings and loiter time.”
- “A third-stream architecture that provides a step-change in thermal management capability, enabling future mission systems for increased combat effectiveness.”
- “Extensive use of advanced component technologies, including ceramic matrix composites (CMC), polymer matrix composites (PMC), and additive manufacturing.”
These incredible powerplants are the ultimate answer for planes requiring both high-speed and fuel-efficient flight options. Beyond the military’s many potential uses, other aircraft, like passenger jets designed for supersonic and subsonic travel, could dramatically change air travel. Or in cargo aircraft, VCEs could optimize fuel use during long-haul flights while delivering bursts of power to drastically cut transit times. Drones and research aircraft would benefit from the ability to shift between varying altitudes and speed profiles to fit many missions. Variable cycle engines (VCEs) can be applied to a wide range of aircraft, and as the first example comes online in the near future, the world of flying will see many exciting new developments.
